Project Description

*Here goes description of a unit*

Additional Modules

BASEMENT

Optional add-on on Basement storm / Bunker / Root cellar. Can be used as stand alone unit.

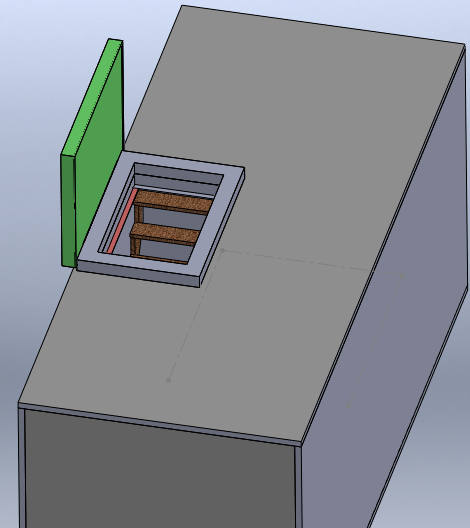

Typical bunker root cellar has baffles to support walls and stairs, bench for seating. Stair hatch is fully supported on all sides by shelf around the perimeter of the opening.

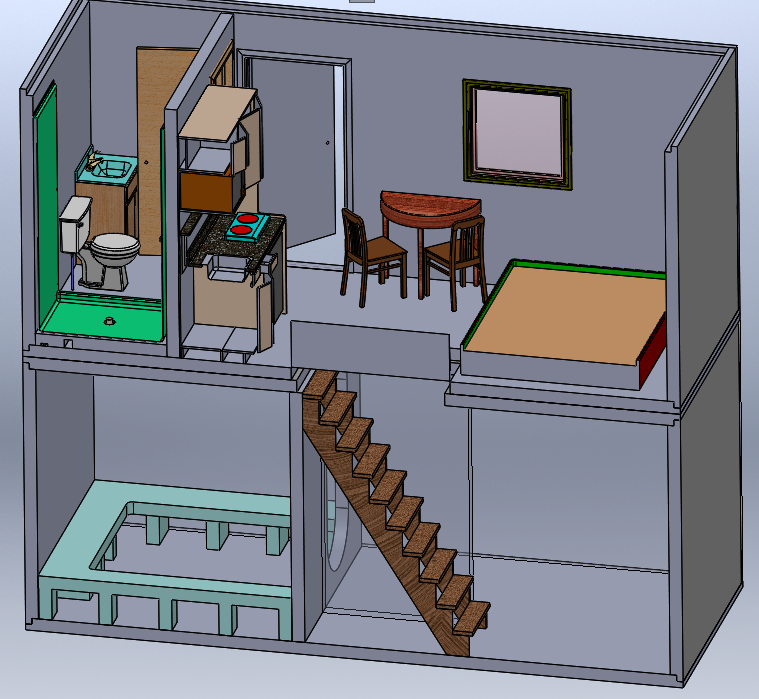

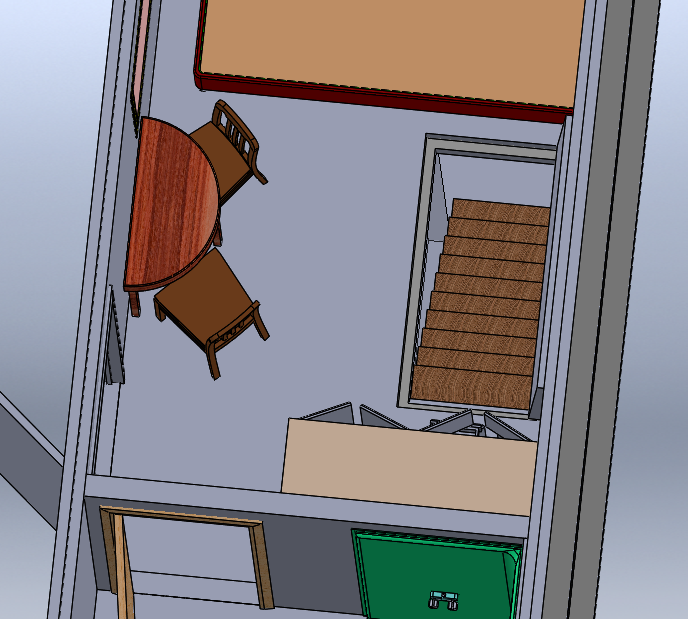

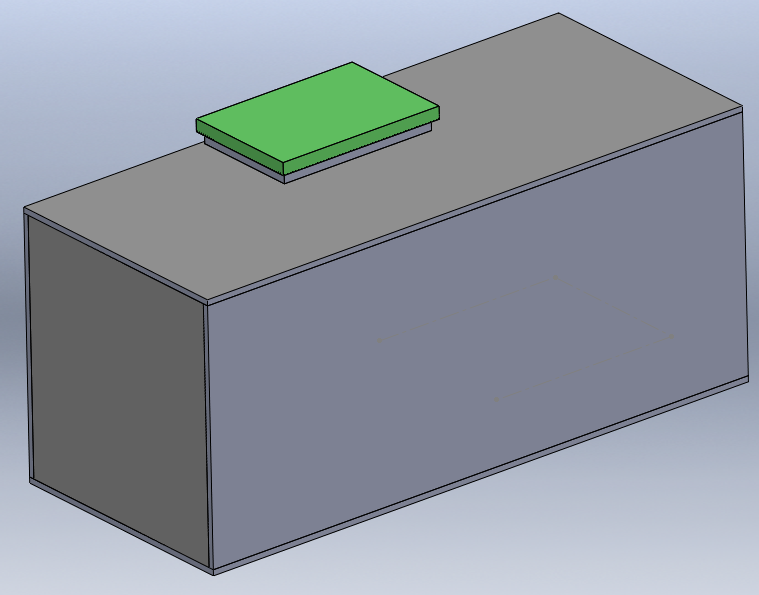

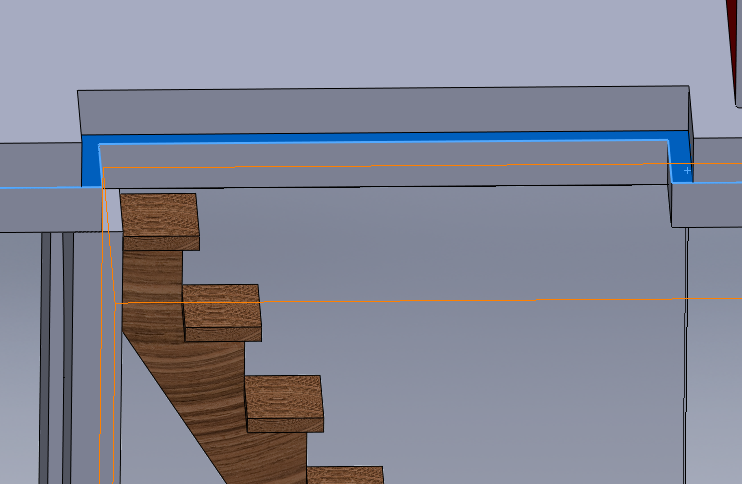

In stand alone version, top hatch has a storm collar to stop water intrusion. When paired with Hope II the collar is not used and hatch opens into the above unit. Access it through kitchen floor area.

Unit is same size as Hope II.

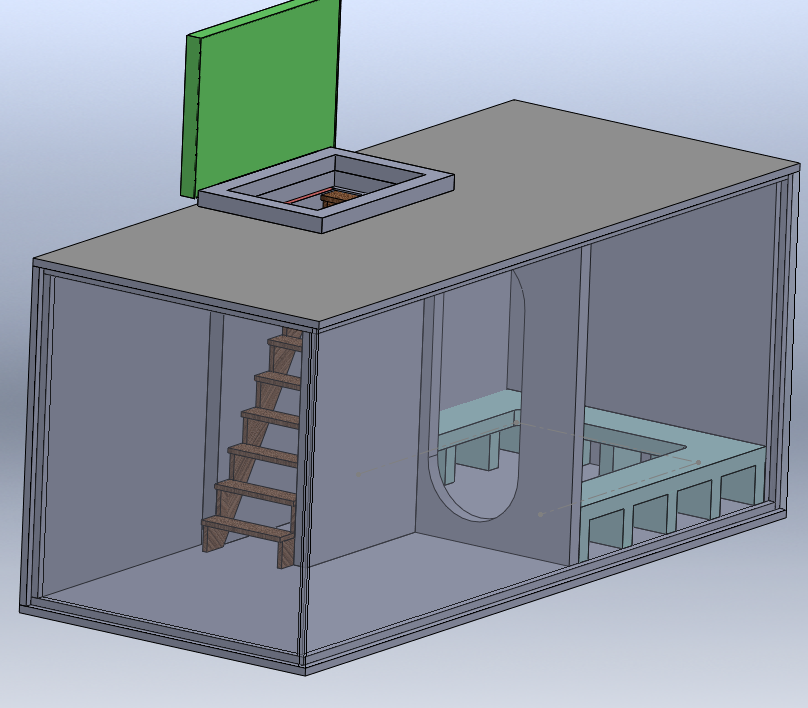

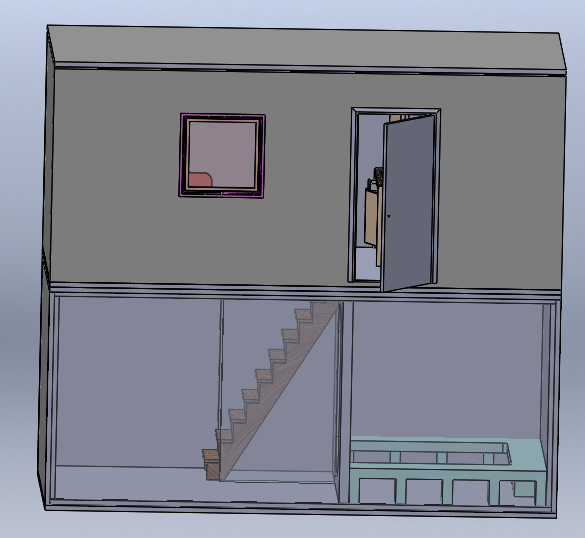

Walls are shown transparent for internal viewing

Nominal Sizes of the unit

Length outside

  • 240” / 20’ / 6.10  m

Width outside

  • 102” / 8’-6” / 2.59m

Height outside

  • 106.75” / 8’-10.75” / 2.71m

Inside length

  • 230.5” / 19’-2.5” / 5.85m

Inside width

  • 92.0” / 7’-8” / 2.33m

Inside height

  • 97.25” / 8’-1.25” / 2.47m

Main area lg.

  • 177.75” / 14’-9.75”/ 4.51m

Bath width

  • 48” / 4.0’ / 1.22m

General notes:

  • Foot print area
    • 170 ft² / 15.80m²
  • Volume
    • 1512 ft³ / 42.81m³
